Hamilton GRID-IT 1-10V DC High Frequency Ballast Controller Module with White Knob and White Surround

Product Code: IDHF10VWH
Brand: Hamilton

This is a made to order product and is non-returnable. Please see the Delivery & Returns section below for more information.

Hamilton GRID-IT 1-10V DC High Frequency Ballast Controller Module with White Knob and White Surround Hamilton GRID-IT 1-10V DC High Frequency Ballast Controller Module with White Knob and White Surround Hamilton GRID-IT 1-10V DC High Frequency Ballast Controller Module with White Knob and White Surround
£ 14.12 ex VAT or £ 16.94 inc VAT
  • Product range: GRID-IT
  • Insert: White Knob
  • Surround: White Surround
  • High frequency ballast controller module (no off)
  • Voltage: 1 - 10 V
  • To be used in conjunction with a 10 or 20 A 2 Way Rocker Switch
  • Maximum 50 ballasts
  • Do NOT connect to 230 V Mains Voltage

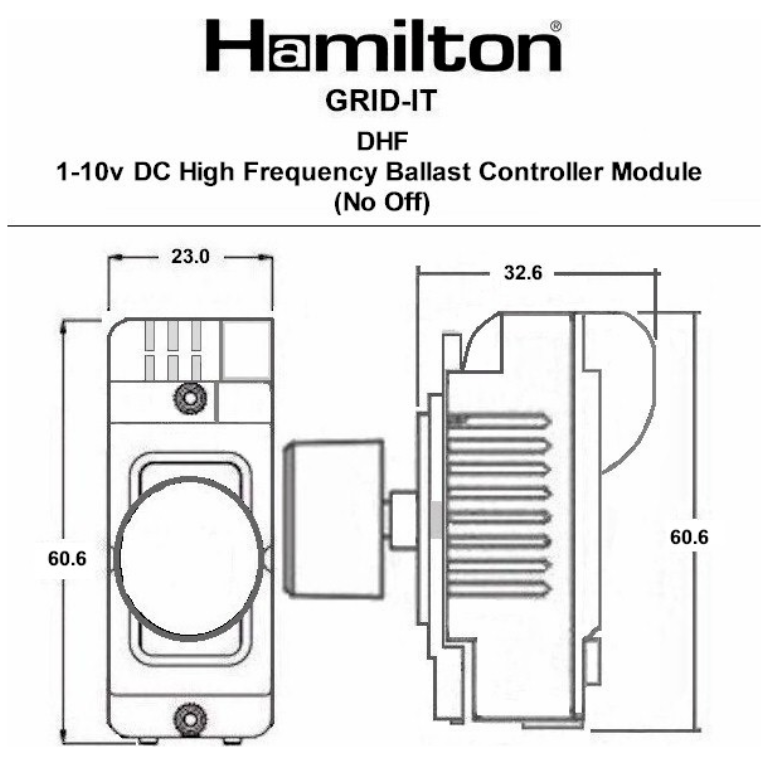

  • Module width: 23 mm
  • Module height: 60.6 mm
  • Module depth: 32.6 mm
  • Minimum wall box depth: 35 mm
  • Contact gap minimum: 3 mm
  • IP rating: IP2XD
  • Ambient operating temperature: -5 to +40 °C
  • Internal Use Only
  • Maximum installation altitude: 2,000 m
  • Face plate must be earthed
  • Terminal capacity:
    • 2 x 1 mm²
    • 2 x 1.5 mm²
  • Earth terminal capacity:
    • 5 x 1 mm²
    • 4 x 1.5 mm²
    • 3 x 2.5 mm²
    • 1 x 4 mm² Multi-strand
    • 1 x 6 mm²

You can also browse Hamilton's full catalogue online. Seen something in there that you can't find on our website? Get in touch and we'll see what we can do.

Hamilton GRID-IT 1-10V DC High Frequency Ballast Controller Module with White Knob and White Surround

IP (Ingress Protection) Rating Guide
This product is IP2X rated


Bathroom zones diagram
Zone 0 Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1 Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2 60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3 Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

  • Free 2 - 5 working days for UK Orders over £75.00 ex. VAT
  • £4.99 ex. VAT 2 - 5 working days for UK Orders under £75.00 ex. VAT
  • Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
    • We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

As this product is made to order, it is non-returnable.

For full returns and refunds information, please see our returns and refunds information page.

Details from the manufacturer

Description

Product Dimmer Switch Module

Dimensions

Depth 32.6 mm
Height 60 mm
Width 23 mm

Features

Flex Outlet N
FM/DAB N
Fuse Fitted N
Includes 13A Switch Socket? N
Includes RCD? N
Ingress Protection IP2XD
Lockable? N
Mounting Grid
Neon Indicator N
RJ11 N
RJ45 Cat 5E N
RJ45 Cat 6 N
Satellite N
Screwless? N
Telephone Master N
Telephone Secondary N
TV Socket N
USB N

General

CE Approved N
Unit Weight 0.027 kg

Material & Finish

Body Material Moulded Plastic
Insert Colour White
Rocker Colour White

Technical Data

Voltage 1-10 V
