Hamilton GRID-IT 250W/210VA Multi-Way Resistive/Inductive Trailing Edge Touch Master Dimmer Module with Satin Brass Insert and Black Surround

Product Code: IDTMSB-B
Brand: Hamilton

This is a made to order product and is non-returnable. Please see the Delivery & Returns section below for more information.

Hamilton GRID-IT 250W/210VA Multi-Way Resistive/Inductive Trailing Edge Touch Master Dimmer Module with Satin Brass Insert and Black Surround Hamilton GRID-IT 250W/210VA Multi-Way Resistive/Inductive Trailing Edge Touch Master Dimmer Module with Satin Brass Insert and Black Surround
£ 24.03 ex VAT or £ 28.84 inc VAT
  • Product range: GRID-IT
  • Insert: Satin Brass Insert
  • Surround: Black Surround
  • Resistive/inductive trailing edge touch master dimmer module
  • Wattage: 250 W resistive/210 VA inductive
  • Current rating: 1.1 A per gang
  • Voltage: 220/250 V AC
  • Mains frequency: 50 Hz
  • Ways: Multi-Way
  • Minimum load: 25 W/25 VA
  • Maximum load: 250 W resistive/210 VA inductive per gang
  • Trailing Edge technology dimmer - suitable for control of both resistive and inductive loads
  • When used for dimming low voltage electronic halogen transformers, it must be noted that the dimmer controls the primary side of the transformer
  • Tungsten filament GU10 lamps must be branded with a fuse base
  • When using mains voltage halogen lamps, dimmers should be de-rated by 25%
  • When dimming LED lamps, dimmers should be de-rated by 75%
  • For further information on compatibility, please contact Hamilton's Technical department

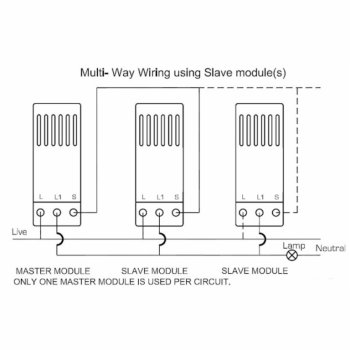

  • For multi-way switching, a push to make retractive switch should be installed in the other positions
  • Standard two way switches will NOT work with this product
  • Module width: 23 mm
  • Module height: 60.6 mm
  • Module depth: 33 mm
  • Minimum wall box depth: 35 mm
  • IP rating: IP2XD
  • Ambient operating temperature: -5 to +40 °C
  • Internal Use Only
  • Maximum installation altitude: 2,000 m
  • Face plate must be earthed
  • Terminal capacity:
    • 2 x 1 mm²
    • 2 x 1.5 mm²
  • Earth terminal capacity:
    • 5 x 1 mm²
    • 4 x 1.5 mm²
    • 3 x 2.5 mm²
    • 1 x 4 mm² Multi-strand
    • 1 x 6 mm²
  • BS EN ISO standard(s): BS EN 60669-2-1

You can also browse Hamilton's full catalogue online. Seen something in there that you can't find on our website? Get in touch and we'll see what we can do.

Hamilton GRID-IT 250W/210VA Multi-Way Resistive/Inductive Trailing Edge Touch Master Dimmer Module with Satin Brass Insert and Black Surround

IP (Ingress Protection) Rating Guide
This product is IP2X rated


Bathroom zones diagram
Zone 0 Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1 Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2 60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3 Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

  • Free 2 - 5 working days for UK Orders over £75.00 ex. VAT
  • £4.99 ex. VAT 2 - 5 working days for UK Orders under £75.00 ex. VAT
  • Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
    • We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

As this product is made to order, it is non-returnable.

For full returns and refunds information, please see our returns and refunds information page.

Details from the manufacturer

Description

Product Dimmer Switch Module
Switched/Unswitched Switched
Type Trailing Edge

Dimensions

Depth 33.0 mm
Height 60 mm
Width 23 mm

Features

Flex Outlet N
FM/DAB N
Fuse Fitted N
Includes 13A Switch Socket? N
Includes RCD? N
Ingress Protection IP2XD
Lockable? N
Mounting Grid
Neon Indicator N
RJ11 N
RJ45 Cat 5E N
RJ45 Cat 6 N
Satellite N
Screwless? N
Telephone Master N
Telephone Secondary N
TV Socket N
USB N
Wattage 250 W

General

CE Approved N
Standards BS EN 60669-2-1

Material & Finish

Body Material Moulded Plastic
Insert Colour Black
Rocker Colour Satin Brass

Technical Data

Current Rating 1.1 A
Voltage 220/250 V
