Hamilton Linea-Georgian CFX Copper Bronze Frame/Copper Bronze Plate 1 Gang 250W/210VA Multi-Way Touch Master Dimmer with Copper Bronze Insert and Black Surround

Product Code: LGX1XTMCB-CBB
Brand: Hamilton

This is a made to order product and is non-returnable. Please see the Delivery & Returns section below for more information.

Hamilton Linea-Georgian CFX Copper Bronze Frame/Copper Bronze Plate 1 Gang 250W/210VA Multi-Way Touch Master Dimmer with Copper Bronze Insert and Black Surround Hamilton Linea-Georgian CFX Copper Bronze Frame/Copper Bronze Plate 1 Gang 250W/210VA Multi-Way Touch Master Dimmer with Copper Bronze Insert and Black Surround Hamilton Linea-Georgian CFX Copper Bronze Frame/Copper Bronze Plate 1 Gang 250W/210VA Multi-Way Touch Master Dimmer with Copper Bronze Insert and Black Surround
£ 95.45 ex VAT or £ 114.54 inc VAT
Free Delivery on this product!
  • Product range: Linea-Georgian CFX
  • CFX - Concealed fixing screws (i.e. screwless plate)
  • Frame finish: Copper Bronze
  • Plate finish: Copper Bronze
  • Plate material: Metal (2 part)
  • Insert: Copper Bronze Insert
  • Surround: Black Surround
  • Resistive/inductive trailing edge touch master dimmer switch
  • Gangs: 1
  • Wattage: 250 W resistive/210 VA inductive
  • Current rating: 1.1 A
  • Voltage: 220/250 V AC
  • Mains frequency: 50 Hz
  • Ways: Multi-Way
  • Minimum load: 25 W/25 VA
  • Maximum load: 250 W resistive/210 VA inductive
  • Trailing Edge technology dimmer - suitable for control of both resistive and inductive loads
  • When used for dimming low voltage electronic halogen transformers, it must be noted that the dimmer controls the primary side of the transformer
  • Tungsten filament GU10 lamps must be branded with a fuse base
  • When using mains voltage halogen lamps, dimmers should be de-rated by 25%
  • Not compatible with LEDs
  • When using a mains voltage halogen load transformer, the maximum rating is 210 VA
  • For further information on compatibility, please contact Hamilton's Technical department

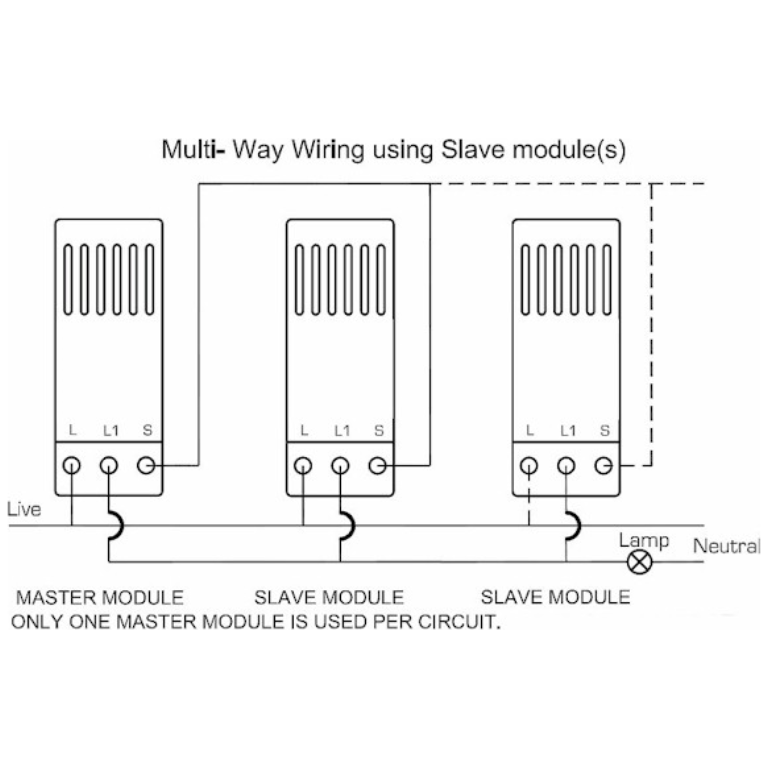

  • For multi-way switching, a push to make retractive switch should be installed in the other positions
  • Standard two way switches will NOT work with this product
  • Plate size: Single
  • Plate width: 95.5 mm
  • Plate height: 95.5 mm
  • Plate depth: 4 mm
  • Minimum wall box depth: 35 mm
  • IP rating: IP2XD
  • Ambient operating temperature: -5 to +40 °C
  • Internal Use Only
  • Maximum installation altitude: 2,000 m
  • Face plate must be earthed
  • Terminal capacity:
    • 2 x 1 mm²
    • 2 x 1.5 mm²
  • Earth terminal capacity:
    • 5 x 1 mm²
    • 4 x 1.5 mm²
    • 3 x 2.5 mm²
    • 1 x 4 mm² Multi-strand
    • 1 x 6 mm²
  • BS EN ISO standard(s): BS EN 60669-2-1

You can also browse Hamilton's full catalogue online. Seen something in there that you can't find on our website? Get in touch and we'll see what we can do.

Hamilton Linea-Georgian CFX Copper Bronze Frame/Copper Bronze Plate 1 Gang 250W/210VA Multi-Way Touch Master Dimmer with Copper Bronze Insert and Black Surround

IP (Ingress Protection) Rating Guide
This product is IP2X rated


Bathroom zones diagram
Zone 0 Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1 Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2 60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3 Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

  • Free 2 - 5 working days for UK Orders over £ 75.00 ex. VAT
  • £ 4.99 ex. VAT 2 - 5 working days for UK Orders under £ 75.00 ex. VAT
  • Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
    • We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

As this product is made to order, it is non-returnable.

For full returns and refunds information, please see our returns and refunds information page.

Details from the manufacturer

Description

Gangs 1 Gang
Product Dimmer Switch
Switched/Unswitched Switched
Type Trailing Edge

Dimensions

Depth 4 mm
Fixing Centres 60.3 mm
Height 95.5 mm
Mounting Box Minimum Depth 35 mm
Width 95.5 mm

Features

Flex Outlet N
FM/DAB N
Fuse Fitted N
Includes 13A Switch Socket? N
Includes RCD? N
Ingress Protection IP2XD
Lockable? N
Mounting Flush
Neon Indicator N
RJ11 N
RJ45 Cat 5E N
RJ45 Cat 6 N
Satellite N
Screwless? Y
Telephone Master N
Telephone Secondary N
TV Socket N
USB N
Wattage 250 W

General

CE Approved N
Standards BS EN 60669-2-1

Material & Finish

Body Material Metal
Face Colour Bronze
Insert Colour Black
Rocker Colour Bronze

Technical Data

Current Rating 1.1 A
Voltage 220/250 V
