Hamilton Linea-Georgian CFX Antique Brass Frame/Polished Brass Plate 1 Gang Non-Isolated Male TV Socket with Black Insert

Product Code: LGXDTVMAB-PBB
Brand: Hamilton

This is a made to order product and is non-returnable. Please see the Delivery & Returns section below for more information.

Hamilton Linea-Georgian CFX Antique Brass Frame/Polished Brass Plate 1 Gang Non-Isolated Male TV Socket with Black Insert Hamilton Linea-Georgian CFX Antique Brass Frame/Polished Brass Plate 1 Gang Non-Isolated Male TV Socket with Black Insert Hamilton Linea-Georgian CFX Antique Brass Frame/Polished Brass Plate 1 Gang Non-Isolated Male TV Socket with Black Insert
£ 56.57 ex VAT or £ 67.88 inc VAT
  • Product range: Linea-Georgian CFX
  • CFX - Concealed fixing screws (i.e. screwless plate)
  • Frame finish: Antique Brass
  • Plate finish: Polished Brass
  • Plate material: Metal (2 part)
  • Insert: Black Insert
  • Non-isolated male television socket
  • Gangs: 1
  • TV outlet (IEC 169-2 male socket) usually used for FM (DAB)
  • DAB compatible
  • FM DC frequencies: 5 - 2200 MHz

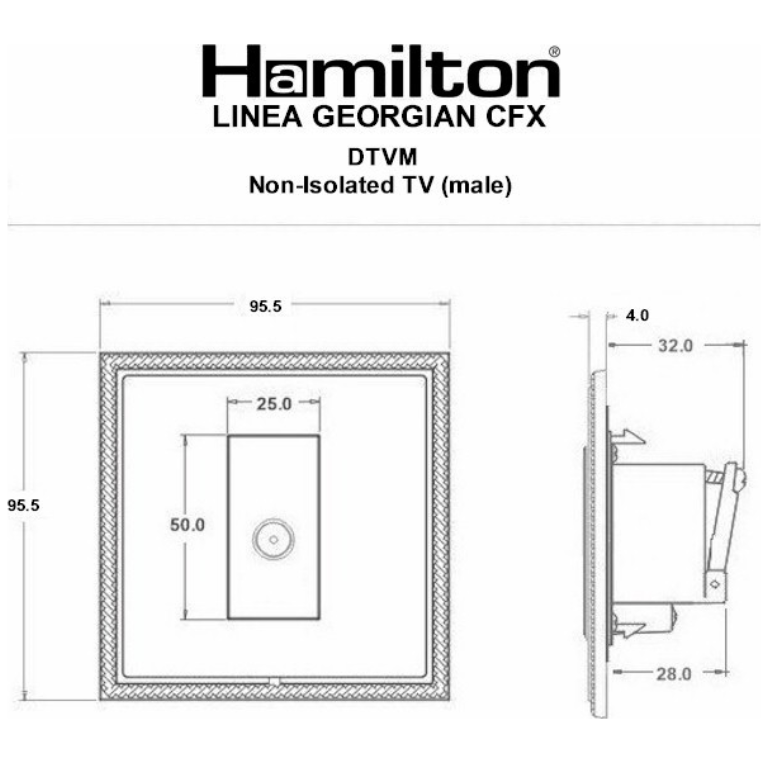

  • Plate size: Single
  • Plate width: 95.5 mm
  • Plate height: 95.5 mm
  • Plate depth: 4 mm
  • Minimum wall box depth: 35 mm
  • IP rating: IP2XD
  • Ambient operating temperature: -5 to +40 °C
  • Internal Use Only
  • Maximum installation altitude: 2,000 m
  • Must be earthed (ref BS7671 415.2.1)
  • Earth terminal capacity:
    • 5 x 1 mm²
    • 4 x 1.5 mm²
    • 3 x 2.5 mm²
    • 1 x 4 mm² Multi-strand
    • 1 x 6 mm²
  • BS EN ISO standard(s): BS 5733 + BS EN 50083-2: 2012/A1:2015 + BS EN 61169-2:2007

You can also browse Hamilton's full catalogue online. Seen something in there that you can't find on our website? Get in touch and we'll see what we can do.

Hamilton Linea-Georgian CFX Antique Brass Frame/Polished Brass Plate 1 Gang Non-Isolated Male TV Socket with Black Insert

IP (Ingress Protection) Rating Guide
This product is IP2X rated


Bathroom zones diagram
Zone 0 Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1 Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2 60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3 Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

  • Free 2 - 5 working days for UK Orders over £ 75.00 ex. VAT
  • £ 4.99 ex. VAT 2 - 5 working days for UK Orders under £ 75.00 ex. VAT
  • Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
    • We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

As this product is made to order, it is non-returnable.

For full returns and refunds information, please see our returns and refunds information page.

Details from the manufacturer

Description

Gangs 1 Gang
Product Coaxial Socket
Qualifier Non-Isolated
Type Non-Isolated

Dimensions

Depth 4 mm
Fixing Centres 60.3 mm
Height 95.5 mm
Mounting Box Minimum Depth 35 mm
Width 95.5 mm

Features

Flex Outlet N
FM/DAB Y
Fuse Fitted N
Includes 13A Switch Socket? N
Includes RCD? N
Ingress Protection IP2XD
Lockable? N
Mounting Flush
Neon Indicator N
RJ11 N
RJ45 Cat 5E N
RJ45 Cat 6 N
Satellite N
Screwless? Y
Telephone Master N
Telephone Secondary N
TV Socket Y
USB N

General

CE Approved N
Standards BS 5733. BS EN 50083-2: 2012/A1:2015. BS EN 61169-2:2007

Material & Finish

Body Material Metal
Face Colour Polished Brass
Insert Colour Black
Rocker Colour Black
