Hamilton Perception CFX Clear 1 Gang 10AX 2 Way Switch with Black Rocker and Black Surround

Product Code: PCR21BL-B
Brand: Hamilton

This is a made to order product and is non-returnable. Please see the Delivery & Returns section below for more information.

Hamilton Perception CFX Clear 1 Gang 10AX 2 Way Switch with Black Rocker and Black Surround Hamilton Perception CFX Clear 1 Gang 10AX 2 Way Switch with Black Rocker and Black Surround Hamilton Perception CFX Clear 1 Gang 10AX 2 Way Switch with Black Rocker and Black Surround
£ 27.86 ex VAT or £ 33.43 inc VAT
  • Product range: Perception CFX
  • CFX - Concealed fixing screws (i.e. screwless plate)
  • Plate finish: Clear
  • Plate material: Plastic
  • Insert: Black Rocker
  • Surround: Black Surround
  • Rocker switch
  • Gangs: 1
  • Current rating: 10 AX
  • Voltage: 220/250 V AC
  • Mains frequency: 50 Hz
  • Ways: 2 Way
  • Maximum load: 10 Amps inductive
  • Switched poles: Single
  • Plate size: Single
  • Plate width: 86 mm
  • Plate height: 86 mm
  • Plate depth: 4 mm
  • Minimum wall box depth: 25 mm
  • Contact gap minimum: 3 mm
  • CE marked
  • IP rating: IP2XD
  • Ambient operating temperature: -5 to +40 °C
  • Internal Use Only
  • Maximum installation altitude: 2,000 m
  • Must be earthed
  • Terminal capacity:
    • 5 x 1 mm²
    • 4 x 1.5 mm²
    • 1 x 2.5 mm²
    • 1 x 4 mm² Multi-strand
    • 1 x 6 mm²
  • Earth terminal capacity:
    • 5 x 1 mm²
    • 4 x 1.5 mm²
    • 3 x 2.5 mm²
    • 1 x 4 mm² Multi-strand
    • 1 x 6 mm²
  • BS EN ISO standard(s): BS EN 60669-1

You can also browse Hamilton's full catalogue online. Seen something in there that you can't find on our website? Get in touch and we'll see what we can do.

Hamilton Perception CFX Clear 1 Gang 10AX 2 Way Switch with Black Rocker and Black Surround

IP (Ingress Protection) Rating Guide
This product is IP2X rated


Bathroom zones diagram
Zone 0 Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1 Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2 60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3 Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

  • Free 2 - 5 working days for UK Orders over £ 75.00 ex. VAT
  • £ 4.99 ex. VAT 2 - 5 working days for UK Orders under £ 75.00 ex. VAT
  • Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
    • We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

As this product is made to order, it is non-returnable.

For full returns and refunds information, please see our returns and refunds information page.

Details from the manufacturer

Description

Gangs 1 Gang
Product Plateswitch
Switched/Unswitched Switched
Type Lighting
Ways 2 Way

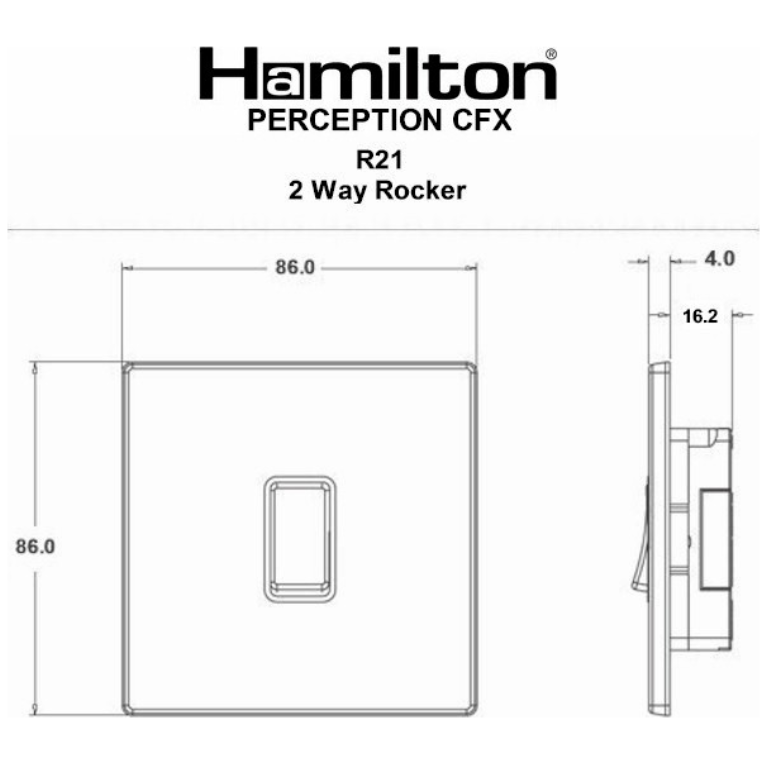

Dimensions

Depth 4 mm
Fixing Centres 60.3 mm
Height 86.0 mm
Mounting Box Minimum Depth 25 mm
Width 86.0 mm

Features

Flex Outlet N
FM/DAB N
Fuse Fitted N
Includes 13A Switch Socket? N
Includes RCD? N
Ingress Protection IP2XD
Lockable? N
Mounting Flush
Neon Indicator N
Pole Configuration Single Pole (1P)
RJ11 N
RJ45 Cat 5E N
RJ45 Cat 6 N
Satellite N
Screwless? Y
Telephone Master N
Telephone Secondary N
TV Socket N
USB N

General

CE Approved N
Standards BS EN 60669-1

Material & Finish

Body Material Metal
Face Colour Clear
Insert Colour Black
Rocker Colour Black

Technical Data

Current Rating 10 A
Voltage 220/250 V
