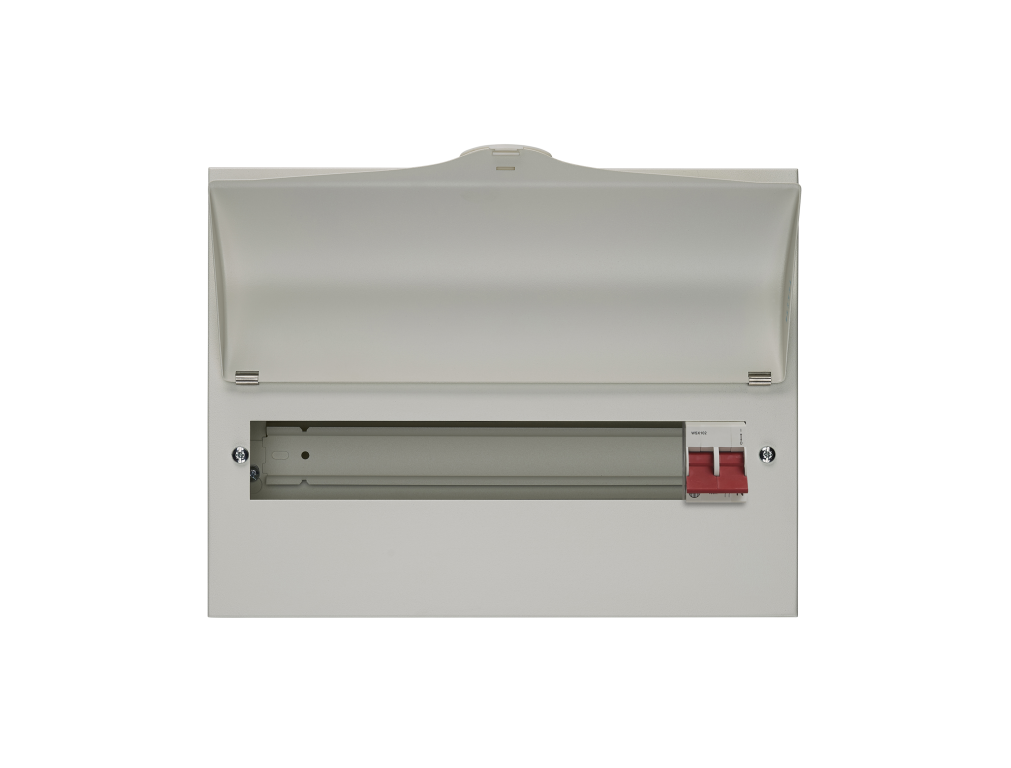

Wylex 14 Way Consumer Unit - 100A Main Switch, Flexible Configuration

Home

Next Day Delivery

Product Code: NM1406FLEX
Brand: Wylex

£ 119.06 ex VAT or £ 142.87 inc VAT

Free Delivery on this product!

Product Information
Downloads
IP Rating Guide
Delivery Info
Returns Policy

14W Main switch only consumer unit.
Includes a 100A main switch with twin line and neutral supply terminals and a 100A flexible busbar assembly.
Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs (sold separately).
Accepts Wylex miniature type 2 SPD, NMT2SPD3W/1 (sold separately).
Metal enclosure includes a full DIN rail with curved visor and temporary locking facility.

Wylex 14 Way Consumer Unit - 100A Main Switch, Flexible Configuration

Technical Data Sheet

This product is IP20 rated

Protected against a solid object greater than 12.5mm such as a finger.

View our full guide to IP Ratings.


Zone 0	Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1	Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2	60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3	Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

Free 2 - 5 working days for UK Orders over £ 75.00 ex. VAT
£ 5.99 ex. VAT 2 - 5 working days for UK Orders under £ 75.00 ex. VAT
£ 13.95 ex. VAT next working day for UK Orders
- Orders must be placed before 2 PM to arrive on the next working day
- Orders placed after this time will not be delivered until the following working day
Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
- We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

We offer a 14-day money-back guarantee on all items (excluding made to order items), provided they are returned in accordance with our Terms and Conditions.

For full returns and refunds information, please see our returns information page.

Details from the manufacturer

Description

Current Rating (max)	100 A
Product	Consumer Unit

Dimensions

Depth	121 mm
Height	261 mm
Width	343 mm

Features

Door/Lid Type	Solid
High Integrity	No
Incomer Current Rating	100 A
Incomer Included	Y
Incomer Type	Switch Disconnector
Ingress Protection	IP2XC
Installation Type	Domestic
Metered	N
Mounting	Surface
Outgoing Devices Included	N
Outgoing Ways	14 Way
Pole Configuration	Double Pole (2P)
RCD s Included	N
Split Load	N
Surge Protection Included	No

General

CE Approved	Y
UKCA Approved	Y

Material & Finish

Body Material

Steel

Technical Data

18th Edition Compliant	Y
Number of Phases	Single
