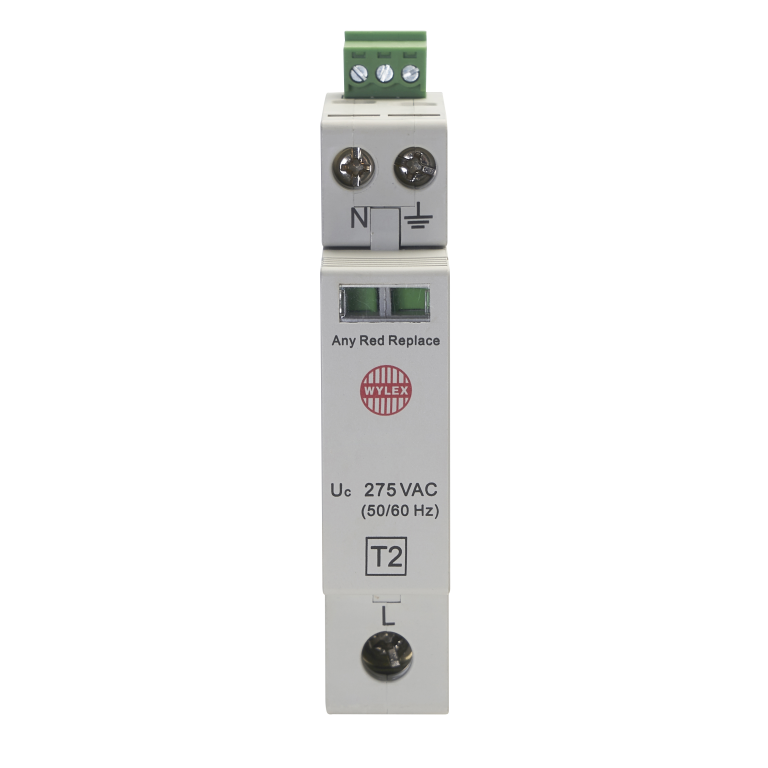

Wylex Type 2 Miniature SPD Kit

Home

Next Day Delivery

Product Code: NMT2SPD3W/1
Brand: Wylex

RRP: £124.18 ex VAT

£ 35.63 ex VAT or £ 42.76 inc VAT

Product Information
Downloads
IP Rating Guide
Delivery Info
Returns Policy

Type 2 SPD kit.
For Wylex consumer units and NH L range Type A SPN Distribution Boards.
DIN rail mounting, single module, including all connections.
Status indication and volt free contact for remote monitoring.
Replacement protective element (cartridge) is available, NMT2SPD/P (sold separately).

Wylex Type 2 Miniature SPD Kit

Technical Data Sheet

This product is IP20 rated

Protected against a solid object greater than 12.5mm such as a finger.

View our full guide to IP Ratings.


Zone 0	Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1	Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2	60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3	Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

Free 2 - 5 working days for UK Orders over £ 75.00 ex. VAT
£ 5.99 ex. VAT 2 - 5 working days for UK Orders under £ 75.00 ex. VAT
£ 13.95 ex. VAT next working day for UK Orders
- Orders must be placed before 2 PM to arrive on the next working day
- Orders placed after this time will not be delivered until the following working day
Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
- We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

We offer a 14-day money-back guarantee on all items (excluding made to order items), provided they are returned in accordance with our Terms and Conditions.

For full returns and refunds information, please see our returns information page.

Details from the manufacturer

Description

Product	Surge Protection Device
Type	Kit

Dimensions

Depth	70 mm
Height	85 mm
Maximum Cable Size	25 mm2

Features

Alarm Output	N
Ingress Protection	IP20
Mounting Type	DIN Rail
Number of Modules	1
Plug-In Module	N
Status Indicator	Y
Surge Protector Type	Type 2
Voltage Type	AC

General

CE Approved	Y
Standards	IEC EN 61643-11
UKCA Approved	Y

Material & Finish

Colour	White
Material	Plastic

Technical Data

Maximum Discharge Current	40 kA
Nominal Discharge Current	20 kA
Nominal Voltage	275 V
Rated Short Circuit Withstand Current	25 kA
Supply Frequency	50 Hz
