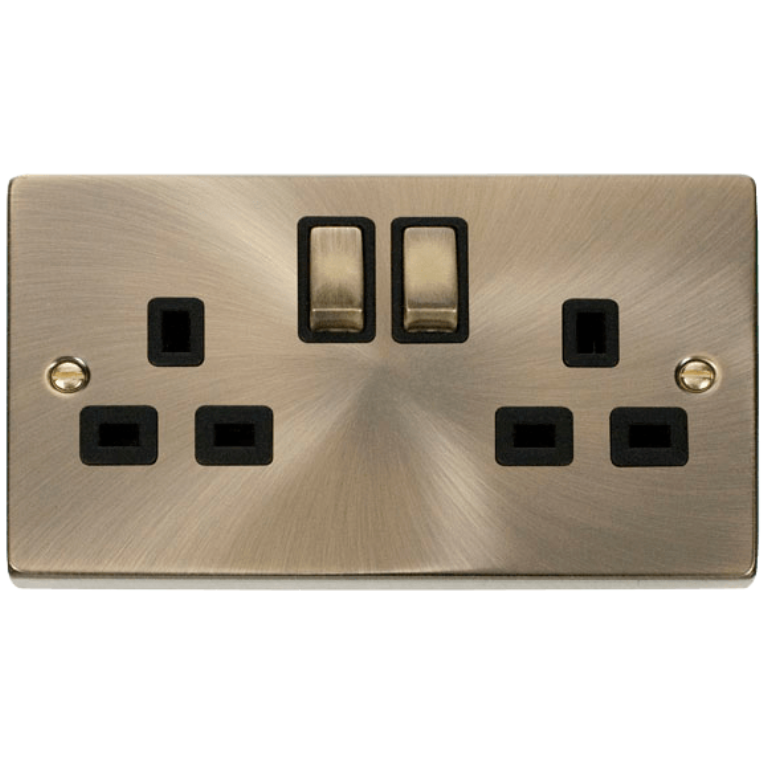

Click Deco Victorian Antique Brass 2 Gang 13A Double Pole Ingot Switched Socket with Antique Brass Rocker and Black Surround

Home

Click Deco Victorian Antique Brass with Black Inserts

Product Code: VPAB536BK
Brand: Click Scolmore

£ 9.59 ex VAT or £ 11.51 inc VAT

Product Information
Downloads
IP Rating Guide
Delivery Info
Returns Policy

With its sophisticated Victorian Antique Brass finish, matching rockers, and Black Insert, the Click Deco VPAB536BK two Gang 13A Double Pole Ingot Switched Socket makes an elegant addition to both homes and businesses. But this stylish socket is just as functional as it is attractive, offering a dependable way to keep appliances connected.

Click Scolmore
Deco Victorian
Double Pole Ingot Switched Socket
Style: Victorian
Finish: Antique Brass
Ingot: Yes
Insert Colour: Black
Gasket Colour: Black
Gangs (Switches/Sockets/Modules): 2
Gang (Size): 2
Plate Dimensions (W) (mm): 146
Plate Dimensions (H) (mm): 88
Plate Dimensions (D) (mm): 8
Plate Dimensions (mm): 146 (W) x 88 (H) x 8 (D)
Dimensions With Gasket (mm): 149 (W) x 91 (H) x 9 (D)
Materials:
- Front Plate: Stainless Steel
- Insert & Housing: Urea
- Switch Cover: Stainless Steel
- Terminals: Brass
- Terminal Screws: Steel & Yellow Passivated
- Contacts: Silver "on-lay" Copper / Brass
- Internal Busbars: Formed Pressed Brass
- Earth Strap: Mild Steel
- Gasket: Nylon
Rated Voltage (V~) (Ue): 250
Frequency (Hz): 50
Load Rating (A): 13
Terminal Size (mm): Ø5
Terminal Torque Value (Nm): 2
Terminal Capacity - Solid (mm²): 3 x 2.5 or 2 x 4
Termination Type: Screw
Minimum Back Box Depth (mm): 25
Plate Fixing Centres - Horizontal (mm): 120.6
Double Pole Switch: Yes
Twin Earth Terminal: Yes
Ingress Protection: IP20
Operational Temperature (°C): -5 to +40
Warranty (Years): 10
Standards: BS 1363-2
UK Design Registration: 3015621
Ensure that the mains supply is isolated before commencing installation and refer to the circuit diagram with the relevant product. Bare earth cables must always be covered with appropriate sleeving and wired to the earth terminal.
For cleaning / polishing of products, use only a soft, dry, clean cloth.
UKCA Compliant: Yes
CE RoHS Directives: 2011/65/EU & 2015/863/EU
CE REACH Directive: 1907/2006/EU
CE Packaging and Packaging Waste Directive: 94/62/EC
UKCA LVD Statutory Instruments: UK SI 2016 No. 1101
UKCA Plug & Socket Regulation: 1994 No. 1768
UKCA RoHS Statutory Instruments: UK SI 2012 No. 3032
UKCA Packaging and Packaging Waste Directive: UK SI 2013 No. 3113

Click Deco Victorian Antique Brass 2 Gang 13A Double Pole Ingot Switched Socket with Antique Brass Rocker and Black Surround

This product is IP20 rated

View our full guide to IP Ratings.


Zone 0	Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1	Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2	60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3	Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

Free 2 - 5 working days for UK Orders over £ 75.00 ex. VAT
£ 4.99 ex. VAT 2 - 5 working days for UK Orders under £ 75.00 ex. VAT
Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
- We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

We offer a 14-day money-back guarantee on all items (excluding made to order items), provided they are returned in accordance with our Terms and Conditions.

For full returns and refunds information, please see our returns and refunds information page.

Details from the manufacturer

Description

Gangs	2 Gang
Product	Socket Outlet
Qualifier	UK Sockets
Switched/Unswitched	Switched

Dimensions

Depth	8 mm
Fixing Centres	120.6 mm
Height	88 mm
Mounting Box Minimum Depth	25 mm
Width	146 mm

Features

Flex Outlet	N
FM/DAB	N
Fuse Fitted	N
Includes 13A Switch Socket?	N
Includes RCD?	N
Ingress Protection	IP20
Lockable?	N
Mounting	Surface
Neon Indicator	N
Pin Shape	Rectangular
Pole Configuration	Double Pole (2P)
RJ11	N
RJ45 Cat 5E	N
RJ45 Cat 6	N
Satellite	N
Screwless?	N
Telephone Master	N
Telephone Secondary	N
TV Socket	N
USB	N
