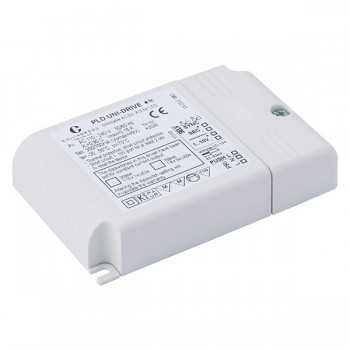

Collingwood Lighting PLD UNIDRIVE (350) 1-10V Dimmable LED Driver

Product Code: PLD UNI-DRIVE 350MA
Brand: Collingwood Lighting

£ 68.43 ex VAT or £ 82.12 inc VAT

Collingwood Lighting PLD UNIDRIVE (350) 1-10V Dimmable LED Driver

Collingwood Lighting’s PLD UNIDRIVE (350) 1-10V Driver offers a dimmable power supply for LEDs in the 350mA range, like the Stainless Steel Spike Light (SL030 F NW) or the Decorative Mini Light (ML01 NW). With this constant current LED driver, you can wire up to ten 1W fittings or three 3W fittings in series. It can dim lights via a press-to-make switch or a 1-10V analogue using the PDC/GRID DIMMER (sold separately), with the added option of linking up to ten PLD UNIDRIVEs to a single dimmer.

  • 1 year warranty
  • Dimmable with press-to-make or 1-10V
  • Sync up to 10 units for dimming (cable supplied)
  • Used to power 1-10 1W LEDs
  • Min/Max Load: 1-10 LEDs @ 350mA
  • Input voltage: 220-240V
  • Output voltage: 49V max
  • Output current: 350mA
  • Power factor: 0.98
  • Ambient temp: -25 to +50°C
  • Case temp: 75°C
  • Double insulated
  • Efficiency: 80%
  • Inrush current: 5A for 0.05mS
  • IP rating: 20
  • Protection: mains surge, short circuit, over heating, and over-load
  • SELV (safety extra low voltage)
  • Input cable: 0.5-1.5mm²
  • Output cable: 0.5-1.5mm²
  • Weight (kg): 0.1
  • Dimension (mm): length - 103, width - 67, depth - 22
  • Other product codes: PLD UNIDRIVE (350)
IP (Ingress Protection) Rating Guide
This product is IP20 rated


Bathroom zones diagram
Zone 0 Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1 Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2 60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3 Anything outside the other zones. No IP rating requirements.
