Knightsbridge Curved Edge 10A 2 Gang 2 Way Switch

As part of Knightsbridge’s Curved Edge range of switches & sockets, this 10A 2 Gang 2 Way Switch (CU3000) offers installers smooth rounded contours, matching screw cap covers, and a versatile White finish that suits a wide variety of settings. All Curved Edge wiring accessories are built to the latest British Standards for quality you can count on.

Finish: White
Features gentle contours & soft rounded edges
Includes matching screw cap covers
10A
2 gang
2 way
Minimum mounting depth (mm): 16

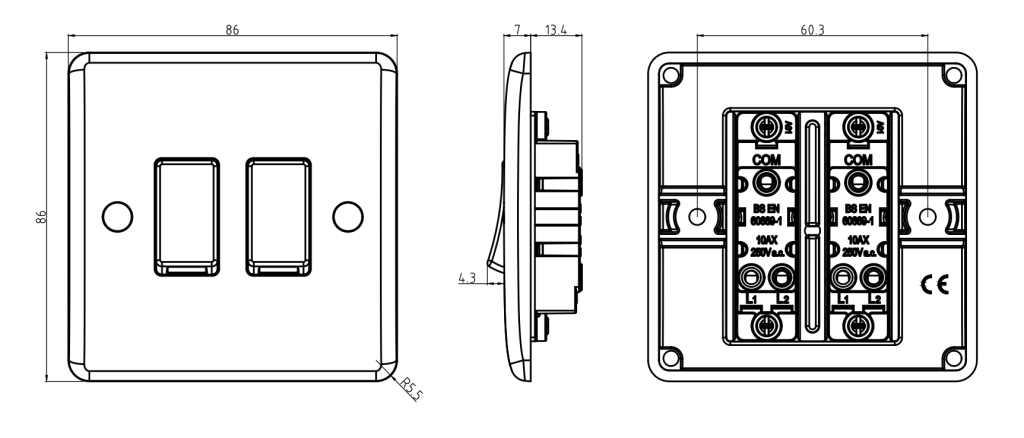

Dimensions (mm): 86x7x86
15 year guarantee

Knightsbridge Curved Edge 10A 2 Gang 2 Way Switch

This product is IP20 rated

Protected against a solid object greater than 12.5mm such as a finger.

View our full guide to IP Ratings.


Zone 0	Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1	Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2	60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3	Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

Free 2 - 5 working days for UK Orders over £ 99.00 ex. VAT
£ 5.99 ex. VAT 2 - 5 working days for UK Orders under £ 99.00 ex. VAT
Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
- We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

We offer a 14-day money-back guarantee on all items (excluding made to order items), provided they are returned in accordance with our Terms and Conditions.

For full returns and refunds information, please see our returns information page.

Details from the manufacturer

Description

Gangs	2 Gang
Product	Plateswitch
Type	Lighting
Ways	2 Way

Dimensions

Depth	7 mm
Height	86 mm
Mounting Box Minimum Depth	16 mm
Width	86 mm

Features

Flex Outlet	N
FM/DAB	N
Fuse Fitted	N
Includes 13A Switch Socket?	N
Includes RCD?	N
Ingress Protection	IP20
Lockable?	N
Neon Indicator	N
Pole Configuration	Single Pole (1P)
RJ11	N
RJ45 Cat 5E	N
RJ45 Cat 6	N
Satellite	N
Screwless?	N
Telephone Master	N
Telephone Secondary	N
TV Socket	N
USB	N

General

CE Approved	Y
Standards	EN 60669-1
UKCA Approved	Y
Unit Weight	0.07 kg
Warranty	25 Years

Material & Finish

Body Material	Thermoset Resin
Face Colour	White

Technical Data

Current Rating	10 A
Voltage	230 V
