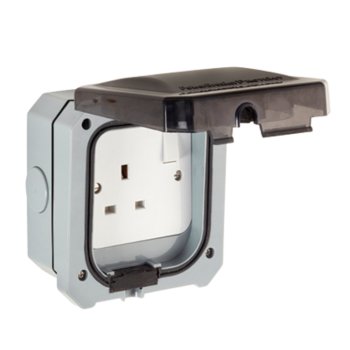

PowerBreaker ProteKt Weatherproof 1 Gang 13A Switched Socket

Product Code: PSKT1G
Brand: PowerBreaker

PowerBreaker ProteKt Weatherproof 1 Gang 13A Switched Socket PowerBreaker ProteKt Weatherproof 1 Gang 13A Switched Socket
£ 11.72 ex VAT or £ 14.06 inc VAT
  • Outdoor Friendly

As part of PowerBreaker’s ProteKt range, this Weatherproof 1 Gang 13A Switched Socket (PSKT1G) has been sturdily built for outdoor use in both commercial and domestic settings. It’s UV resistant and IP66 rated for protection against water and dust, so you can rest assured that it will hold up under even the most inclement weather conditions. It’s also covered by a 5 year warranty for extra peace of mind.

  • Weatherproof to IP66 with plug inserted and lid closed
  • Protected from dust and water
  • Suitable for long term projects in any weather
  • Ideal for both domestic and commercial applications
  • Features 20mm knockouts
  • UV resistant
  • 1 gang
  • Switched
  • Rated Voltage: 230 ~ 240V 50Hz
  • Max operating current: 13A
  • Socket conforms to: BS1363-2
  • Enclosure conforms to: BS 1363, IEC 60670-1 & IEC 60670-22
  • Warranty: 5 year
  • Dimensions (mm): W - 131, H - 119, D - 80

PowerBreaker ProteKt Weatherproof 1 Gang 13A Switched Socket

IP (Ingress Protection) Rating Guide
This product is IP66 rated


Bathroom zones diagram
Zone 0 Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1 Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2 60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3 Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

  • Free 2 - 5 working days for UK Orders over £75.00 ex. VAT
  • £4.99 ex. VAT 2 - 5 working days for UK Orders under £75.00 ex. VAT
  • Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
    • We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

We offer a 14-day money-back guarantee on all items (excluding made to order items), provided they are returned in accordance with our Terms and Conditions.

For full returns and refunds information, please see our returns and refunds information page.

Details from the manufacturer

Description

Gangs 1 Gang
Product Socket Outlet
Switched/Unswitched Switched
Type Switched

Dimensions

Height 131 mm
Width 119 mm

Features

Flex Outlet N
FM/DAB N
Fuse Fitted N
Includes 13A Switch Socket? Y
Includes RCD? N
Ingress Protection IP66
Lockable? N
Mounting Surface
Neon Indicator N
Pin Shape Rectangular
RJ11 N
RJ45 Cat 5E N
RJ45 Cat 6 N
Satellite N
Screwless? N
Telephone Master N
Telephone Secondary N
TV Socket N
USB N
Wattage 3000 W

General

CE Approved Y
UKCA Approved Y
Unit Weight 0.348 kg
Warranty 5 Years

Material & Finish

Body Material Polycarbonate
Face Colour Grey

Technical Data

Current Rating 13 A
Voltage 230 V
