Timeguard MLSA360N 360° PIR Light Controller

Product Code: MLSA360N
Brand: Timeguard

RRP: £73.35 ex VAT

£ 30.64 ex VAT or £ 36.77 inc VAT

Product Information
Downloads
IP Rating Guide
Delivery Info
Returns Policy

Secure the exterior of your property with Timeguard’s 360° PIR Light Controller (MLSA360N). With 360º detection over a 12m range and three different mounting options to choose from, this enhanced PIR is sure to provide the right coverage for your home or business. For added convenience, the MLSA360N features three different optional mode settings and an adjustable Light On time, which can be set anywhere from 5 seconds to 12 minutes according to your requirements.

Adjustable PIR Detector with Pan and Tilt Sensor Aiming Adjustment
12m Detection Range at 3m Mounting Hieght
Enhanced 360° Detection Zone for Optimum Coverage
Multiple Mounting Options - Surface, Ceiling and Corner Mounting
Immediate Illumination of Lights on Exit and Approach
IP Rating: 45
Light ON Time Adjustable from 5 Seconds to 12 Minutes
LUX (light Level) Adjustment - Day to Night (5 to 1000 LUX - Permernantly ON when at Max)
Optional Mode Setting - Manual, Dusk to Dawn and Test Mode
Corner Mounting Bracket Supplied in the Pack
Total PIR Switching: 2000W Incandescent/Halogen, 600W Fluorescent/Low Energy, 110W Compact Fluorescent and Electronic Ballast Lighting Plus 80W LED
Easy Installation with Fast-Fix Termination Block Connection
Operating Voltage: 230
Conforms to Directives: 73/23/EEC, 89/336/EEC

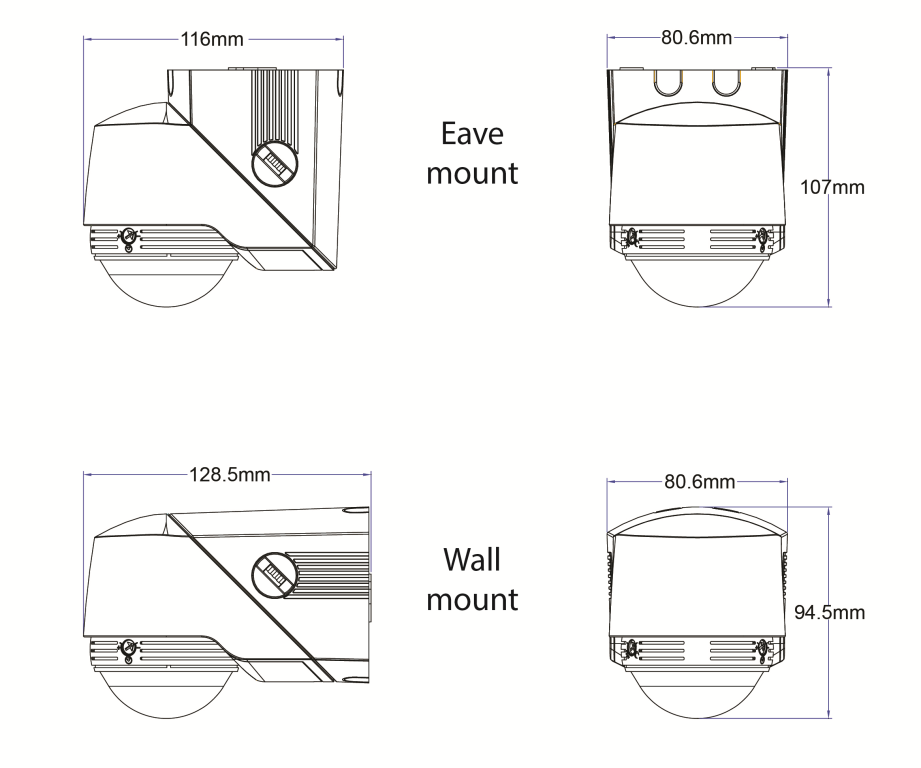

Dimensions: Height - 95mm, Width - 80mm, Depth - 125mm
3 Year Guarantee

Timeguard MLSA360N 360° PIR Light Controller

This product is IP45 rated

Protected against a solid object greater than 1mm such as a wire.

Protected against jets of water. Limited ingress permitted.

View our full guide to IP Ratings.


Zone 0	Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1	Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2	60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3	Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

Free 2 - 5 working days for UK Orders over £ 99.00 ex. VAT
£ 5.99 ex. VAT 2 - 5 working days for UK Orders under £ 99.00 ex. VAT
Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
- We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

We offer a 14-day money-back guarantee on all items (excluding made to order items), provided they are returned in accordance with our Terms and Conditions.

For full returns and refunds information, please see our returns information page.

Details from the manufacturer

Description

Product	Occupancy Detector
Type	PIR

Dimensions

Depth	128.5 mm
Length	94.5 mm
Width	80.6 mm

Features

c/w Cable	N
c/w Mounting Bracket	Y
c/w Photocell	Y
c/w PIR	Y
Detection Angle	360 Degrees
Detection Distance	12 Metres
Dimmable	N
Ingress Protection	IP45
Maximum Load (W)	3000 W
Mounting	Surface Ceiling
Number of Channels	1
Supply Voltage	230 V
Time Lag Range	5s 12min

General

Unit Weight	0.276 kg
Warranty	3 Years

Material & Finish

Colour	Black
Material	Polycarbonate PC
