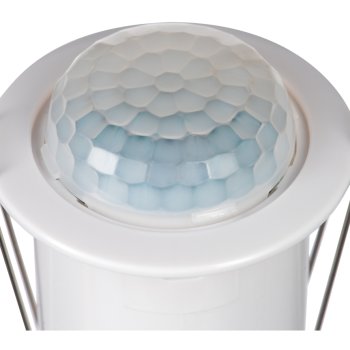

Timeguard SureTime 360° Mini Flush Mount PIR Sensor

Home

Lighting and Bulbs

Light Fittings

Standalone PIR

Timeguard SureTime 360° Mini Flush Mount PIR Sensor

Product Code: STFMMINI
Brand: Timeguard

RRP: £27.26 ex VAT

£ 13.25 ex VAT or £ 15.90 inc VAT

Product Information
Downloads
IP Rating Guide
Delivery Info
Returns Policy

The Timeguard SureTime STFMMINI is a Mini Flush Mounted PIR Sensor with a 360° detection angle and a generous 6m detection range. In addition to featuring adjustable light level and on time, this PIR can switch up to 1000W of halogen lighting (200W fluorescent/LED). It also includes manual override, and easily accessible controls.

Finish: White
Detection angle: 360°
Detection range: 6m
Adjustable light level: 10 - 1000 LUX
Adjustable time on: 3 sec - 18min
Total PIR switching: 1000W halogen, 200W fluorescent and LED
Voltage: 230V
IP rating: 44
Speedy connection

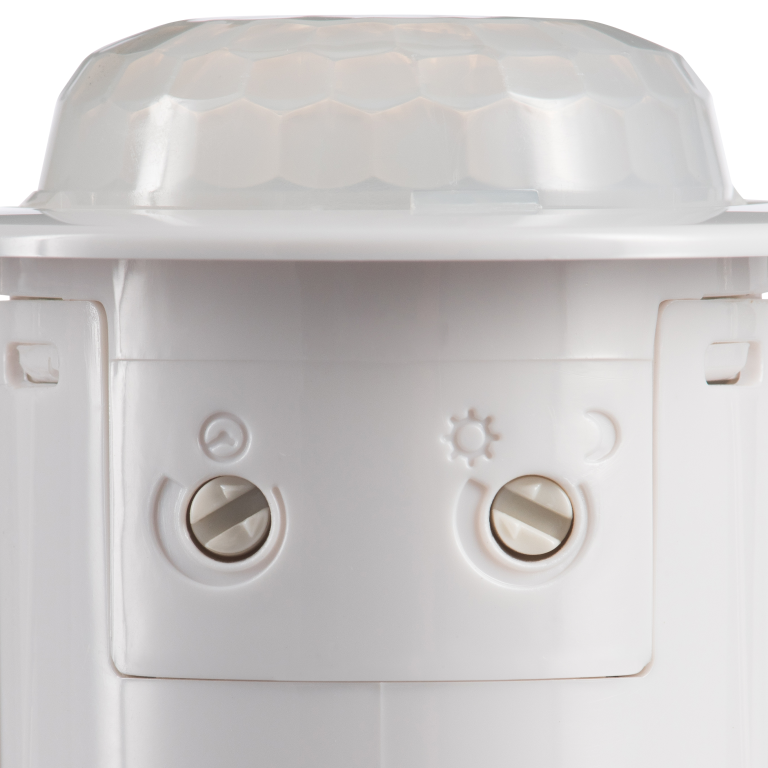

Easily accessible controls
Manual override
Class II double insulated
Operating temperature: -20 to +40°C
Flush mounted
Guarantee: 2 years
Cutout (mm): 40
Dimensions (mm): H - 73, D - 50

Timeguard SureTime 360° Mini Flush Mount PIR Sensor

This product is IP44 rated

Protected against a solid object greater than 1mm such as a wire.

Protected against water splashed from all directions. Limited ingress permitted.

View our full guide to IP Ratings.


Zone 0	Inside the bath or shower tray. Minimum IP rating of IP67, and a maximum voltage of 12 V.
Zone 1	Directly above the bath to a height 225 cm from the floor, or the inside of shower cubicle excluding the tray. Minimum IP rating of IP65.
Zone 2	60 cm perimeter around the bath or shower to a height 225 cm from the floor. 60 cm radius around sink tap. Minimum IP rating of IP44.
Zone 3	Anything outside the other zones. No IP rating requirements.

DELIVERY OPTIONS

Free 2 - 5 working days for UK Orders over £ 99.00 ex. VAT
£ 5.99 ex. VAT 2 - 5 working days for UK Orders under £ 99.00 ex. VAT
Free collection in 2 - 5 working days from our Hampton Hill (Middlesex) or Chessington (Surrey) Branches
- We will contact you as soon as your order is ready for collection

For full delivery details, see our delivery information page. You can also add one or more products to your basket, which will calculate the cost of delivery.

We offer a 14-day money-back guarantee on all items (excluding made to order items), provided they are returned in accordance with our Terms and Conditions.

For full returns and refunds information, please see our returns information page.

Details from the manufacturer

Description

Product	Occupancy Detector
Type	PIR

Dimensions

Depth	50 mm
Length	73 mm
Width	50 mm

Features

c/w Cable	N
c/w Mounting Bracket	N
c/w Photocell	N
c/w PIR	Y
Detection Angle	360 Degrees
Detection Distance	6 Metres
Dimmable	N
Ingress Protection	IP44
Maximum Load (W)	1000 W
Mounting	Flush
Number of Channels	1
Supply Voltage	230 V
Time Lag Range	3s 18min

General

Unit Weight	0.051 kg
Warranty	2 Years

Material & Finish

Colour	White
Material	Polycarbonate PC
